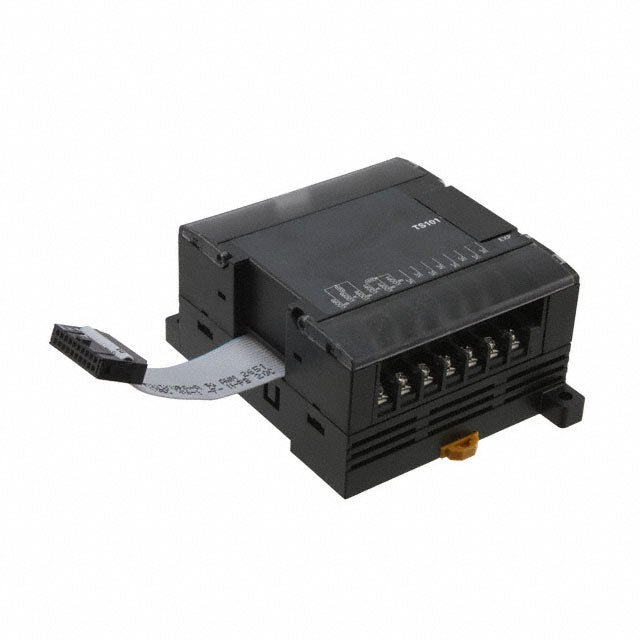

Omron CP1W-TS101 Sysmac PLC Temperature Sensor Unit | 2 Thermocouple Inputs (K/J Type)

SKU: CP1W-TS101
(0)
$106.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CP1W-TS101
Parameter Item Detailed Description
Unit Type Temperature Sensor Unit (Thermocouple)
Input Points 2 Inputs
Compatible Sensors Thermocouple Type K or Type J
Measurement Range (K) -200 to 1,300 °C (Resolution: 0.1°C or 1°C)
Measurement Range (J) -100 to 850 °C (Resolution: 0.1°C or 1°C)
Conversion Time 250 ms / 2 points
Current Consumption 5V DC: 40 mA max; 24V DC: 50 mA max
Dimensions (W×H×D) 66 × 90 × 50 mm
