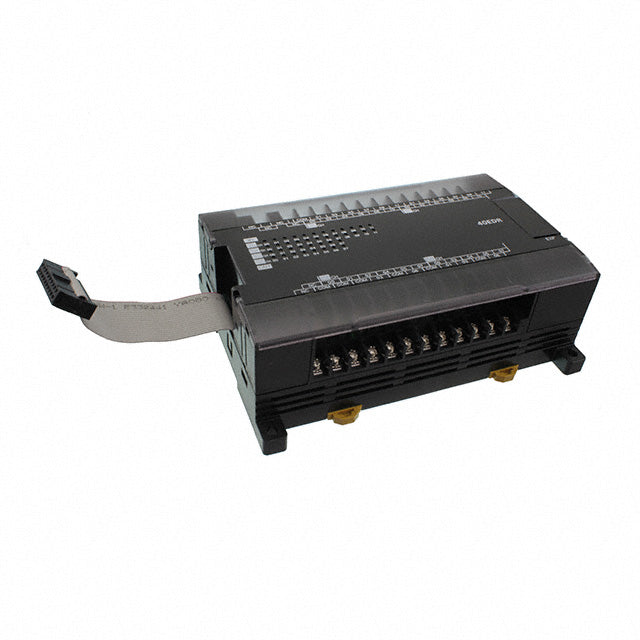

Omron CP1W-40EDR Sysmac PLC Expansion Unit | 40 I/O Points (24 Input / 16 Relay Output)

SKU: CP1W-40EDR
(0)
$100.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CP1W-40EDR
Parameter Item Detailed Description
Unit Type Digital I/O Expansion Unit
Total I/O Points 40 Points
Input Specification 24 Inputs (24V DC, 5mA)
Output Specification 16 Relay Outputs (2A, 250V AC / 24V DC)
Connection Method Built-in Ribbon Cable (Expansion Bus)
Current Consumption 5V DC: 80 mA; 24V DC: 160 mA
External Dimensions 150 × 90 × 50 mm (W×H×D)
Weight 380g max.
