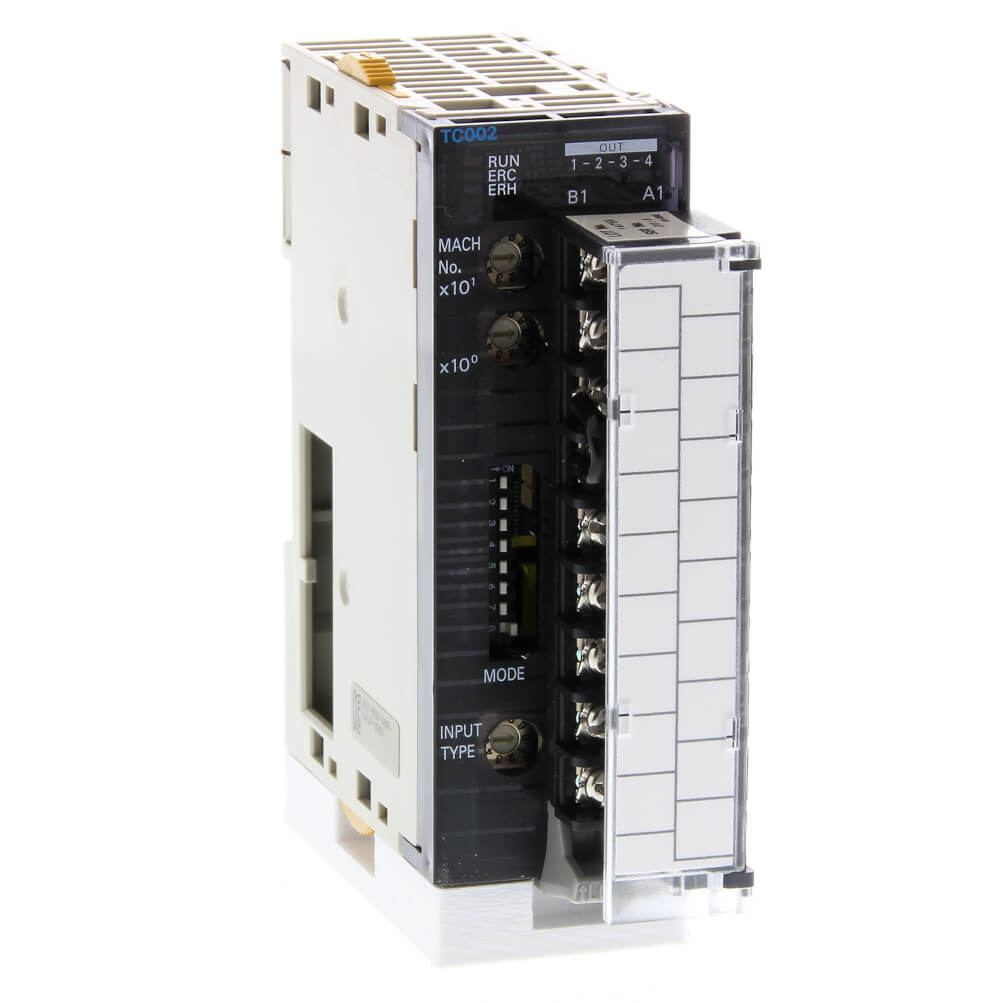

Omron CJ1W-TC002 Temperature Control Unit | 4-Loop, Thermocouple Input, NPN Output, for CJ1/CJ2 Series

SKU: CJ1W-TC002
(0)
$267.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CJ1W-TC002
Parameter Item Detailed Description
Number of Loops 4 Loops
Input Type Thermocouple (K, J, L, T, U, N, R, S, B)
Output Type Transistor Output (NPN / Sinking)
Control Mode PID Control or ON/OFF Control
Sampling Period 500 ms for all 4 loops
Internal Consumption 250 mA max at 5V DC
Wiring Connection Removable Terminal Block (M3 screws)
