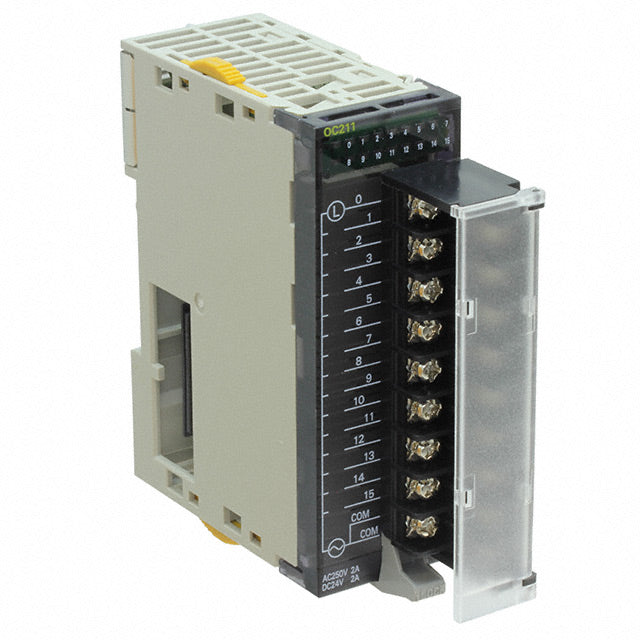

Omron CJ1W-OC211 Sysmac PLC Relay Output Unit | 16-Point, 250V AC / 24V DC, 2A per Point

SKU: CJ1W-OC211
(0)
$65.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CJ1W-OC211
Parameter Item Detailed Description
Output Points 16 Points (8 points per common)
Switching Capacity (Max) 250 V AC (2 A) / 24 V DC (2 A)
Switching Capacity (Min) 5 V DC, 10 mA
Response Time ON: 15 ms max. / OFF: 15 ms max.
Relay Service Life Electrical: 100,000 operations / Mechanical: 20M
Internal Consumption 5V DC: 110 mA; 24V DC: 96 mA
Terminal Block Removable M3 Screw Terminals
Dimensions (W×H×D) 31 × 90 × 65 mm
