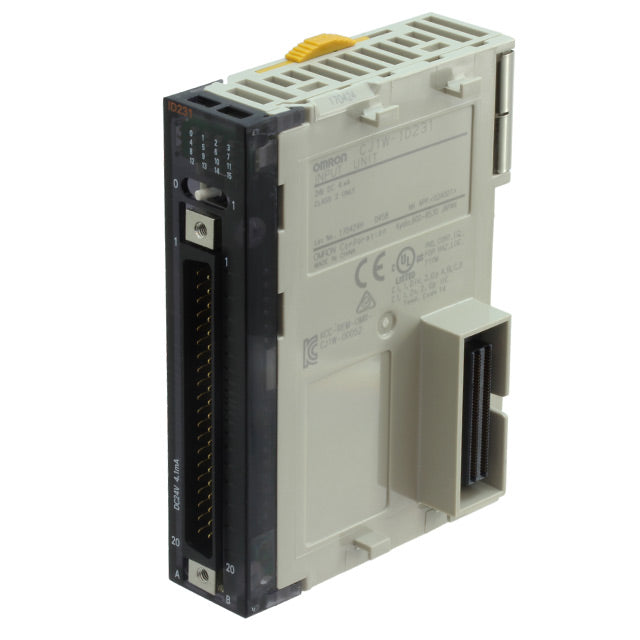

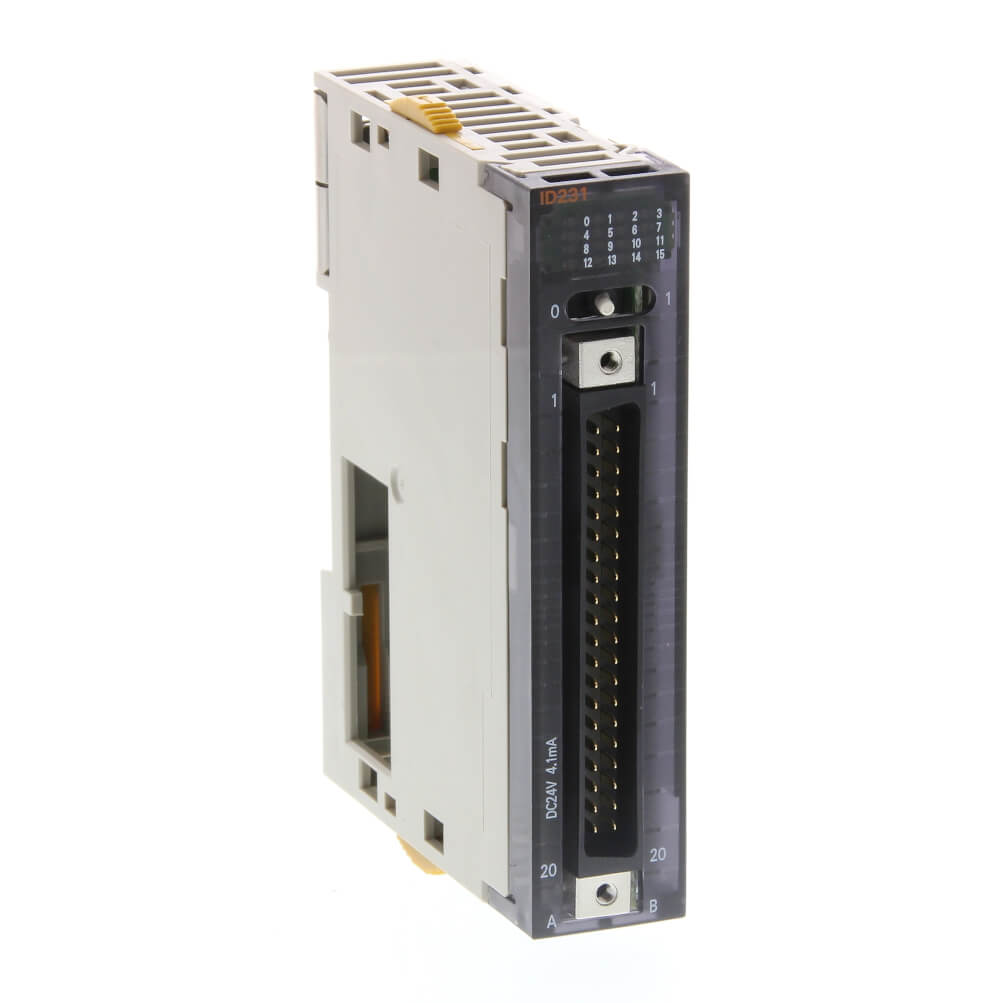

Omron CJ1W-ID231 Sysmac PLC High-Density DC Input Unit | 32-Point, 24V DC, Fujitsu Connector

SKU: CJ1W-ID231
(0)
$78.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CJ1W-ID231
Parameter Item Detailed Description
Input Points 32 Points
Input Voltage 24 V DC (+10% / -15%)
Input Current 4.1 mA typical (at 24 V DC)
ON Voltage/Current 19.0 V DC min. / 3 mA min.
OFF Voltage/Current 5.0 V DC max. / 1 mA max.
Connection Type 40-pin Fujitsu Connector
Internal Current Consumption 0.09 A (at 5V DC)
Dimensions (W×H×D) 20 × 90 × 65 mm
