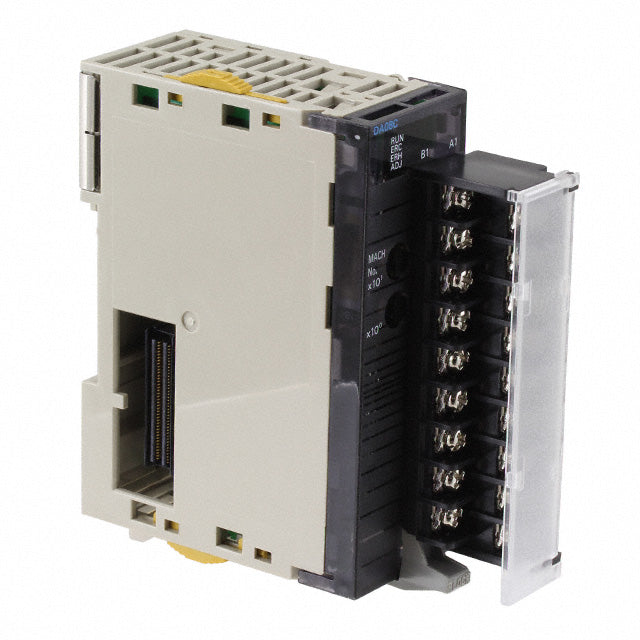

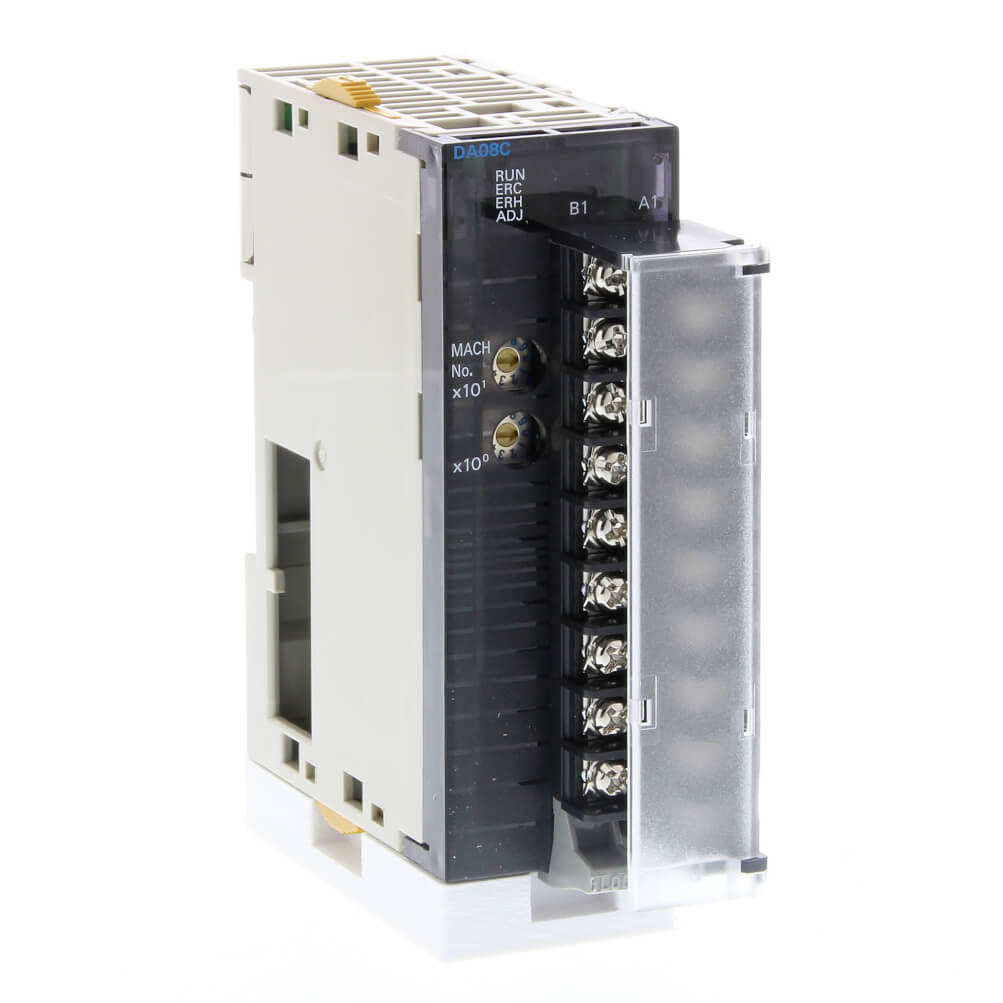

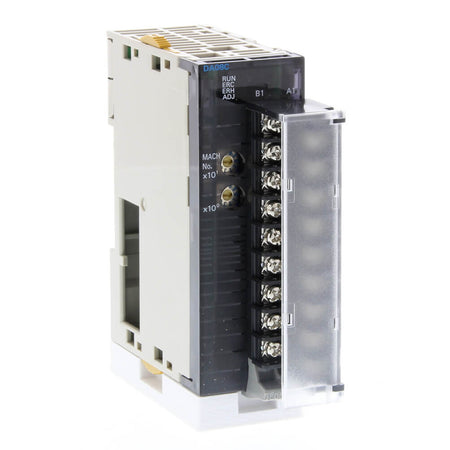

Omron CJ1W-DA08C Sysmac PLC Analog Output Unit | 8-Channel, 4-20mA Current Output

SKU: CJ1W-DA08C
(0)
$275.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CJ1W-DA08C
Parameter Item Detailed Description
Unit Type Analog Output Unit (High Density)
Output Points 8 Channels
Output Signal 4 to 20 mA
Resolution 1/4000 (Settable to 1/8000)
Conversion Speed 1.0 ms / channel max.
External Load Resistance 600 Ω max.
Internal Current Consumption 0.14 A (at 5V DC)
Dimensions (W×H×D) 31 × 90 × 65 mm
