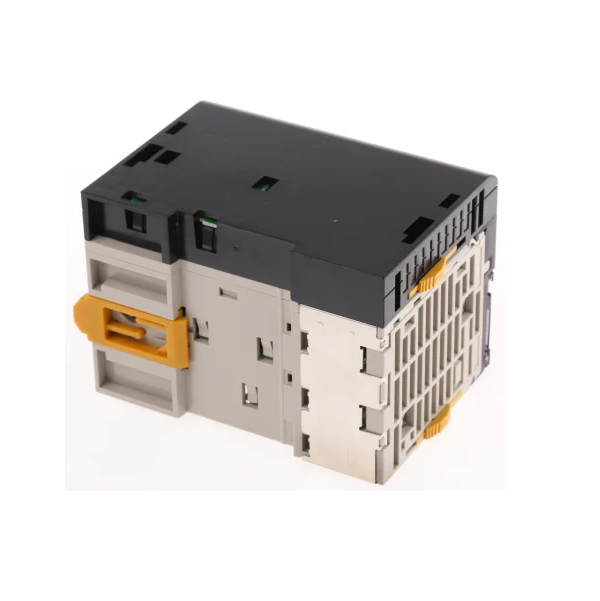

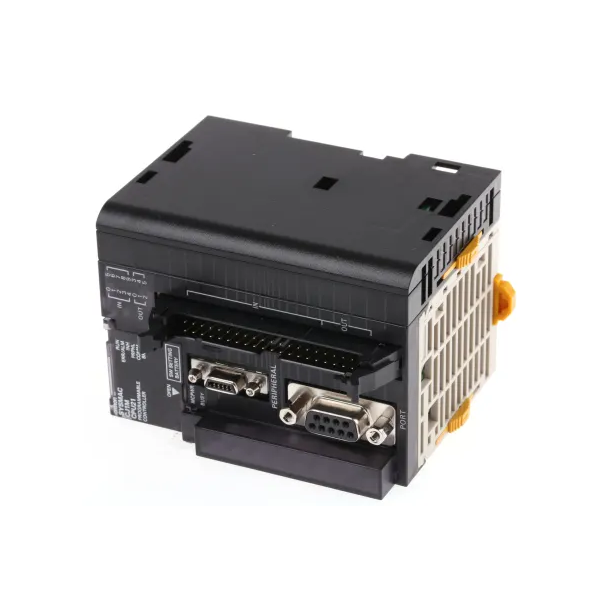

Omron CJ1M-CPU21 Sysmac PLC CPU Unit | 5K Steps, 160 I/O Points, Built-in Pulse I/O

SKU: CJ1M-CPU21
(0)
$220.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | CJ1M-CPU21
Parameter Item Detailed Description
Program Capacity 5K Steps
Data Memory 32K Words (DM: 32K words, EM: None)
Built-in I/O 16 Points (10 Inputs / 6 Outputs)
Max. I/O Capacity 160 Points (with Expansion Units)
Pulse Outputs 2 Axis (100 kHz max. frequency)
High-Speed Counters 2 Axis (Single phase 100 kHz / Differential 50 kHz)
Current Consumption 0.58 A (at 5V DC)
Dimensions (W×H×D) 31 × 90 × 65 mm
