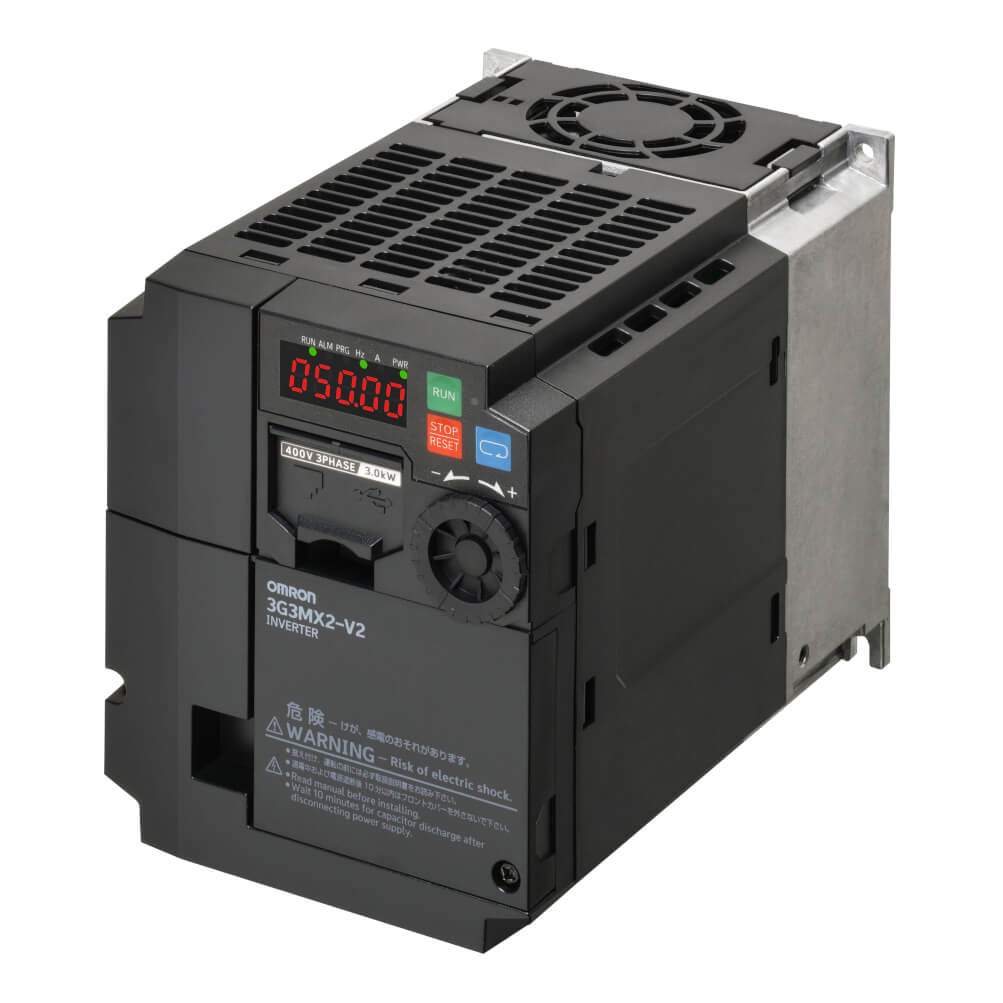

Omron 3G3MX2-A4022-V2 MX2 Series VFD | 2.2kW (3HP), 3-Phase 400V, High Starting Torque

SKU: 3G3MX2-A4022-V2
(0)
$235.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications | 3G3MX2-A4022-V2
Parameter Item Detailed Description
Max. Applicable Motor 2.2 kW (Heavy Duty) / 3.0 kW (Normal Duty)
Input Voltage 3-Phase 380 to 480 V AC, 50/60 Hz
Rated Output Current 5.5 A (CT) / 6.7 A (VT)
Control Logic V/f and Open Loop Vector Control
Frequency Range 0.1 to 400 Hz (up to 1000 Hz with firmware tweaks)
Cooling Method Forced Air Cooling
Communication RS-485 (Modbus-RTU) Built-in
