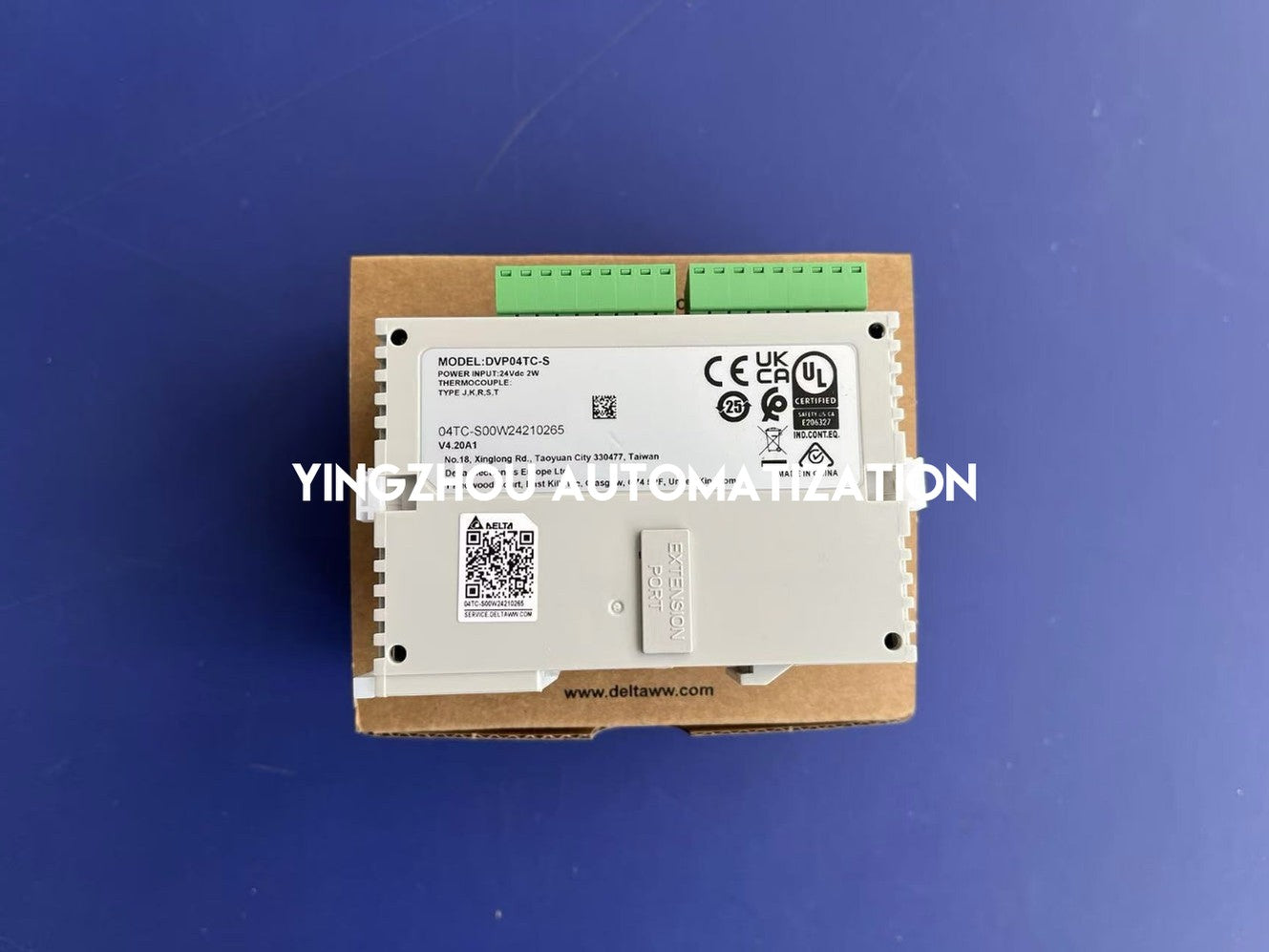

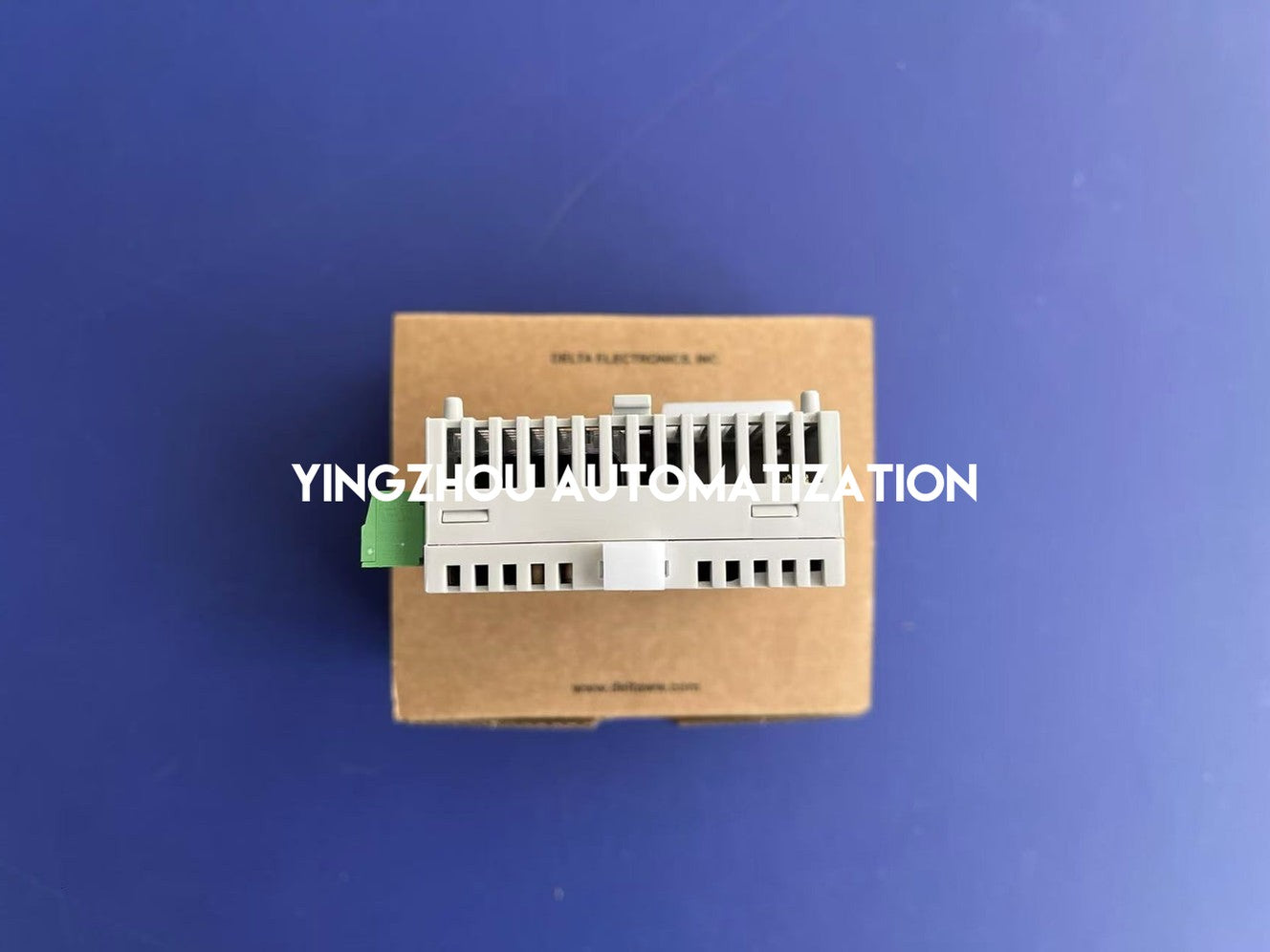

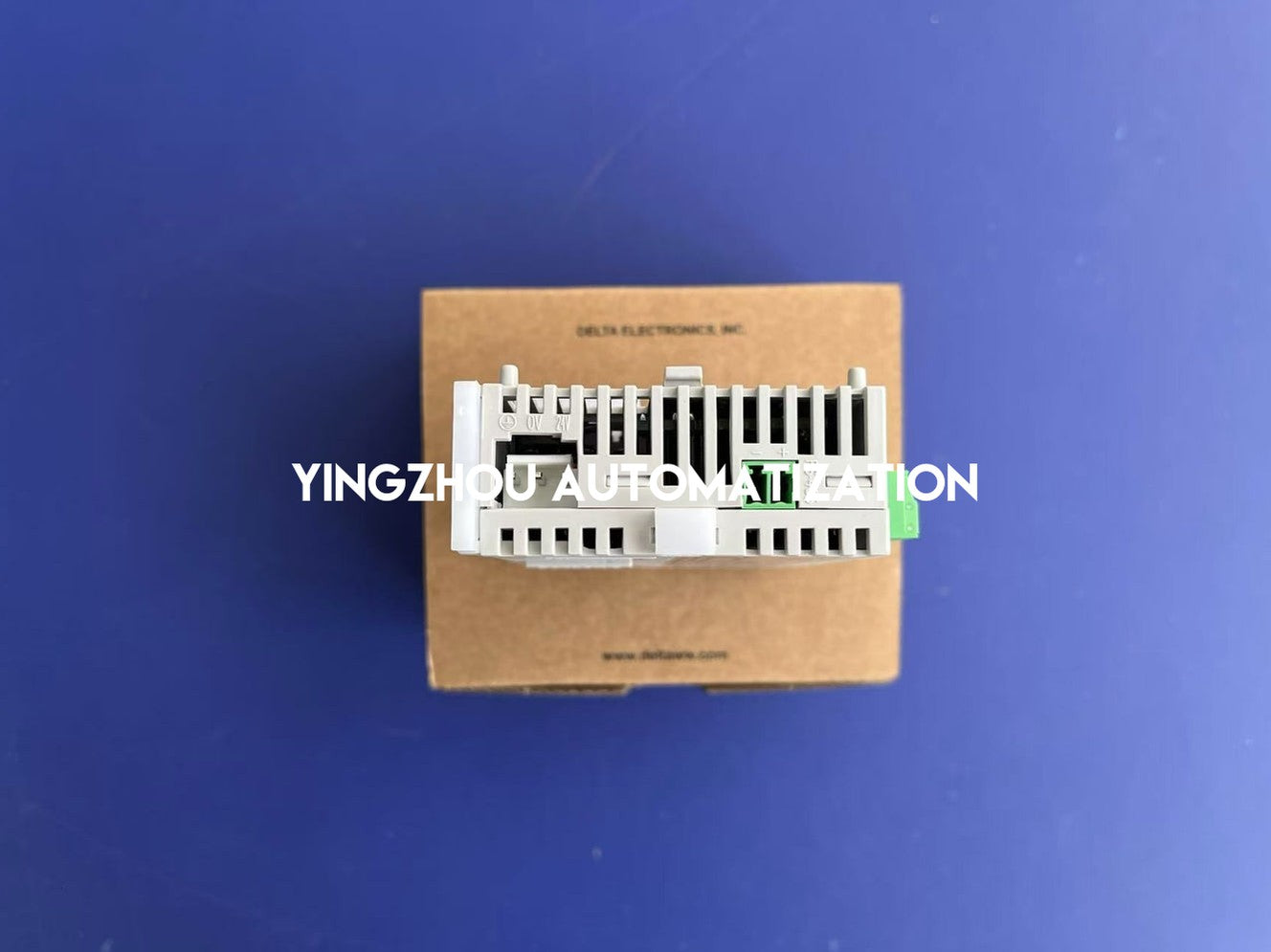

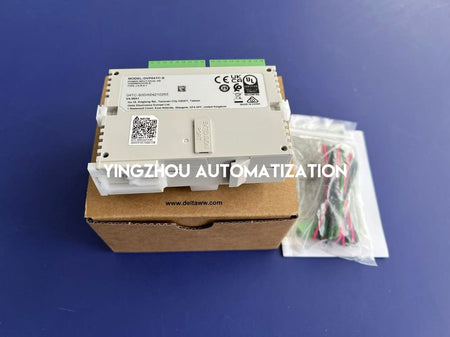

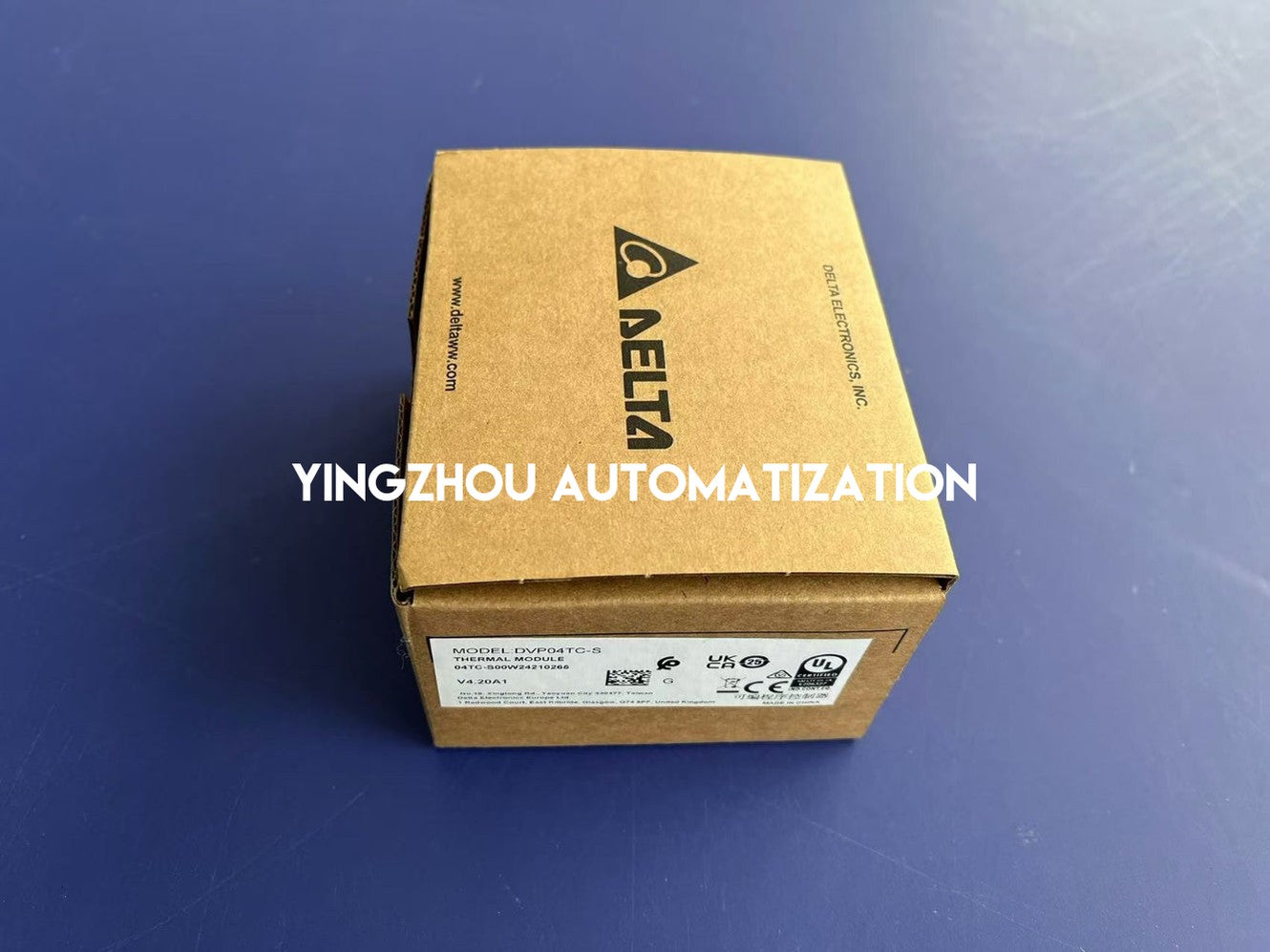

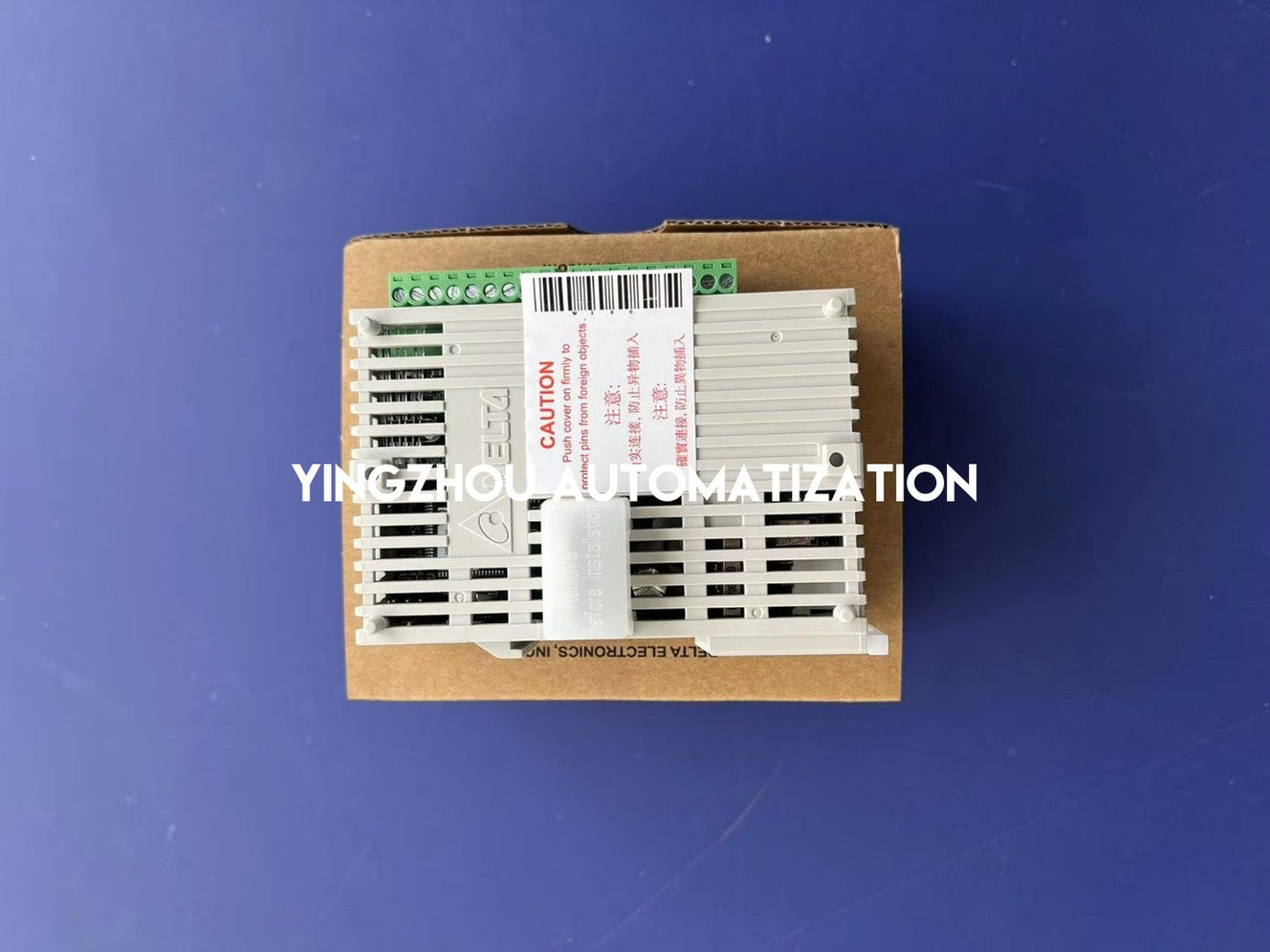

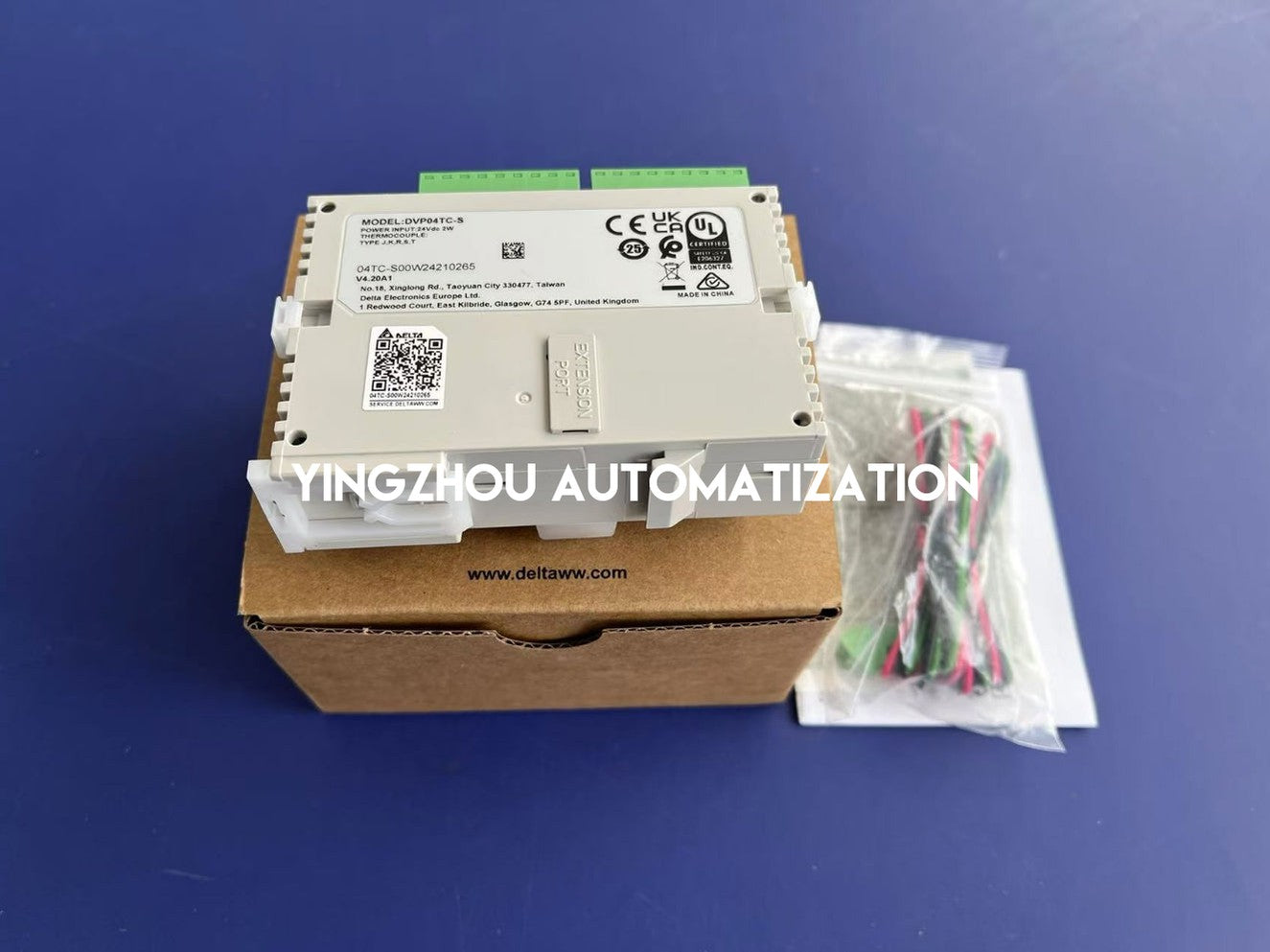

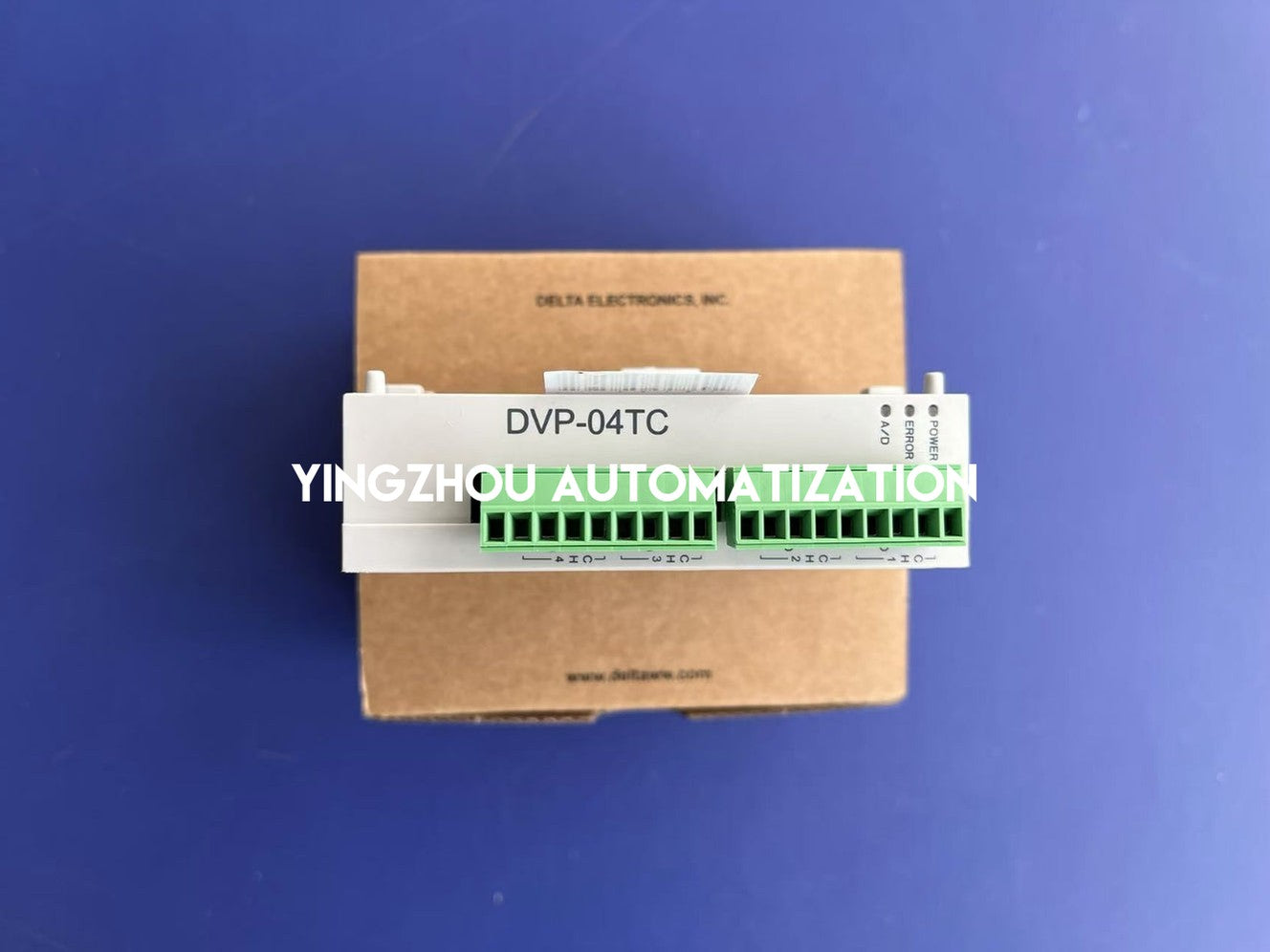

Delta DVP-S Series DVP04TC-S Temperature Module - 4-Channel Thermocouple Input

SKU: DVP04TC-S
(0)
$82.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345
Technical Specifications
Module Type Temperature Measurement (TC)
Input Channels 4 Channels
Sensor Types Thermocouple J, K, R, S, T, E, N
Resolution 14-bit (0.1°C per unit)
Conversion Time 200ms per channel
Accuracy ±0.5% of full scale
Isolation 500VDC between digital & analog
Series Compatibility Delta DVP-S Series PLCs
