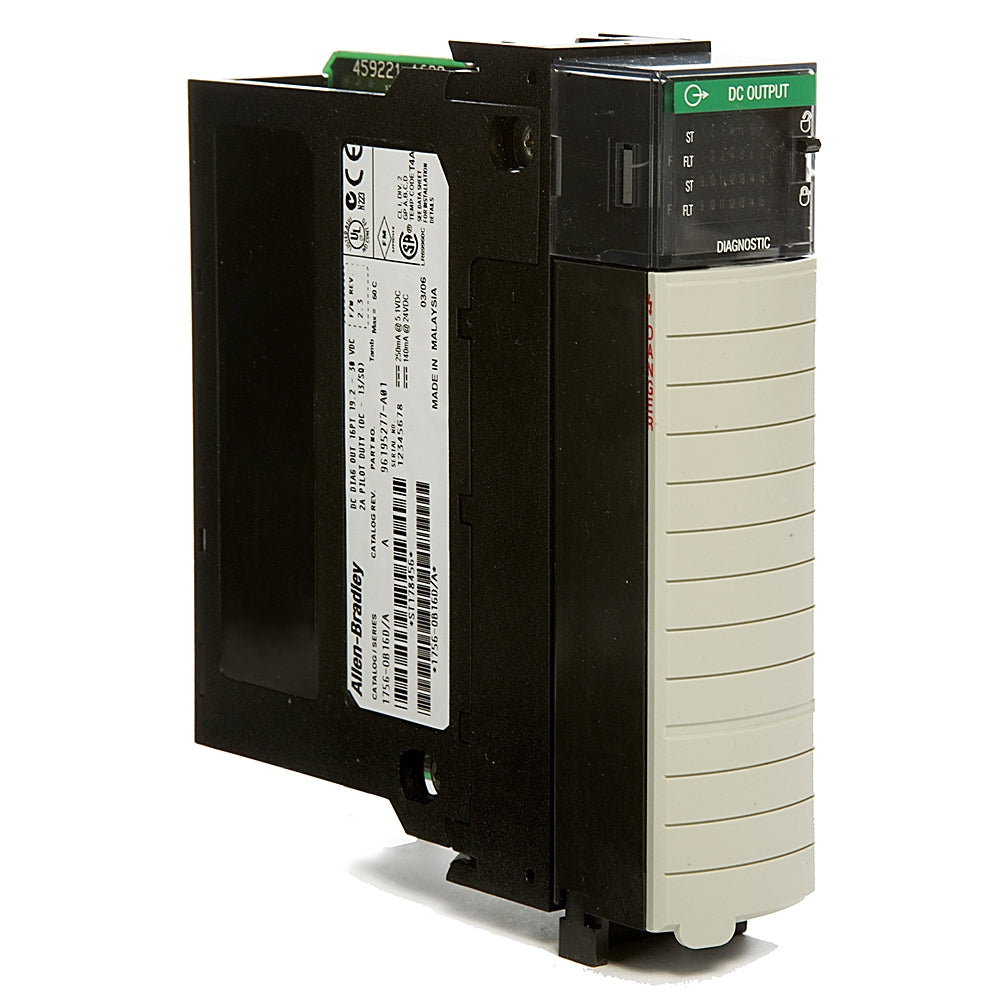

Allen-Bradley 1756-OB16D ControlLogix 16-Point 24V DC Diagnostic Output Module

SKU: 1756-OB16D
(0)
$448.99 inc. VAT
In stock
Usually ships within 24 hours
Model Number
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 1756-OB16D ControlLogix Diagnostic Output Module

The Allen-Bradley 1756-OB16D is a high-performance ControlLogix diagnostic digital output module designed for industrial automation systems requiring superior reliability and real-time monitoring. This module provides 16 sourcing 24V DC output points with advanced point-level diagnostics.

Key Features & Benefits

  • Point-Level Diagnostics: Provides real-time monitoring of each output point to quickly identify short circuits or open circuits, significantly reducing system downtime.
  • Electronic Fusing: Features internal electronic fusing to protect the module from overloads, enhancing safety and extending component lifespan.
  • Seamless Integration: Fully compatible with the Rockwell Automation ControlLogix platform, supporting hot-swapping for simplified maintenance.

Technical Specifications

Parameter Specification
Catalog Number 1756-OB16D
Number of Outputs 16 Points (with individual diagnostics)
Rated Voltage 24V DC (Range: 19.2-30V DC)
Output Current per Point 1.0 A max @ 30V DC
Backplane Current (5.1V) 250 mA

Typical Applications

Ideal for automotive manufacturing, oil and gas, power systems, and complex assembly lines where safety, reliability, and diagnostic efficiency are critical.
